Class AB, 125W Audio Amplifier

[guclusat]

This circuit uses the push-pull amplification output using the transistors SC5200 and SA1940 which are complementary transistors. The power supply should be symmetrical with + 45V and -45V.

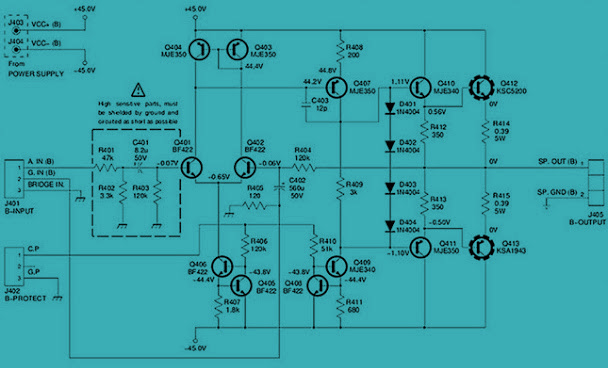

125W Audio Amplifier Schematics

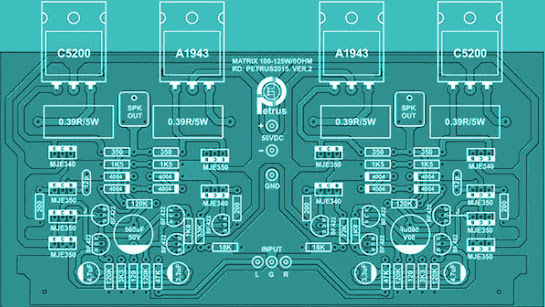

125W Audio Amplifier Top PCB (17x8CM)

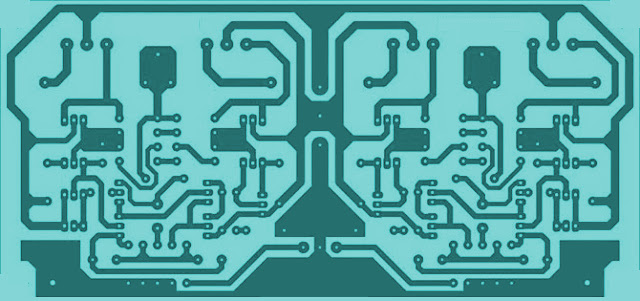

125W Audio Amplifier Bottom PCB
