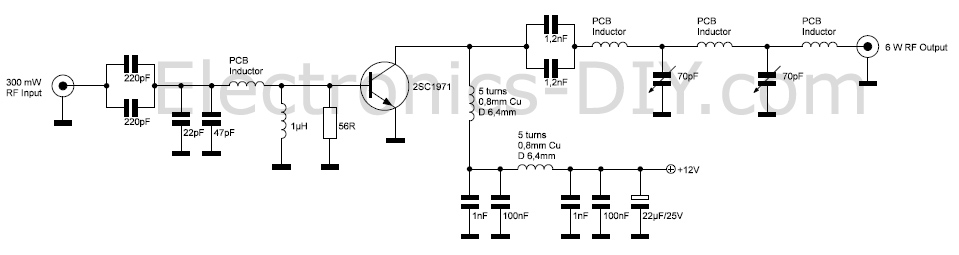

2SC1971 8 Watts FM broadcast (87,5-108MHz) broadband microstripline RF-amplifier
1.- all SMD components are 1206 types
2.- connect the bottomlayer (groundplane) on several points (through via's) with the
toplayer of the pcb. THIS IS VERY IMPORTANT!
VCC = Supply voltage (see also the 2SC1971 datasheet)
CuL = magnetwire, enameled copper wire
(Note: 1 mm equals approx. to #18 A.W.G
0.8 mm equals approx. to #20 A.W.G
0,3 mm equals approx. to #28 A.W.G.)
Amplifikatör 6Watt Mikroşerit (2SC1971) devresi ekte yer almaktadır
1.- all SMD components are 1206 types
2.- connect the bottomlayer (groundplane) on several points (through via's) with the
toplayer of the pcb. THIS IS VERY IMPORTANT!
VCC = Supply voltage (see also the 2SC1971 datasheet)
CuL = magnetwire, enameled copper wire
(Note: 1 mm equals approx. to #18 A.W.G
0.8 mm equals approx. to #20 A.W.G
0,3 mm equals approx. to #28 A.W.G.)
Amplifikatör 6Watt Mikroşerit (2SC1971) devresi ekte yer almaktadır
