The full schematic diagram for the circuit is shown in Fig. 3.4.2.

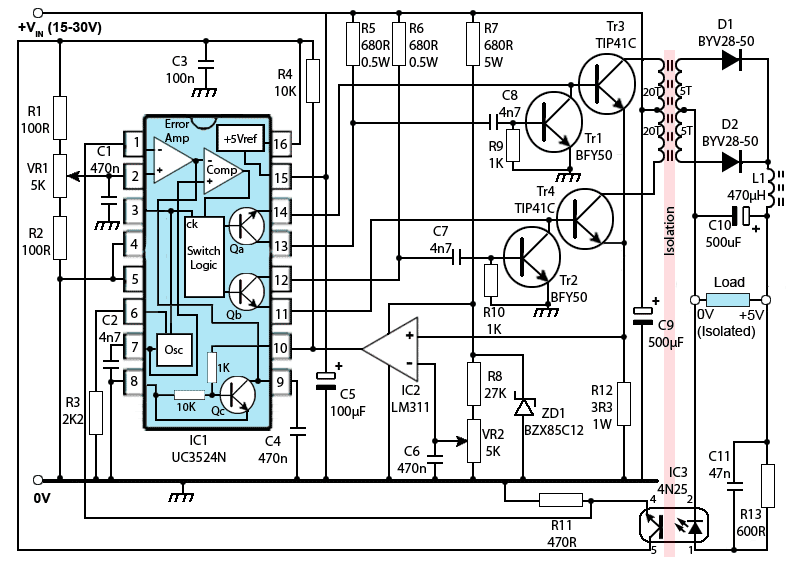

Fig. 3.4.2 Circuit diagram of a push-pull SMPS using the Texas Instruments UC3524 I.C.
