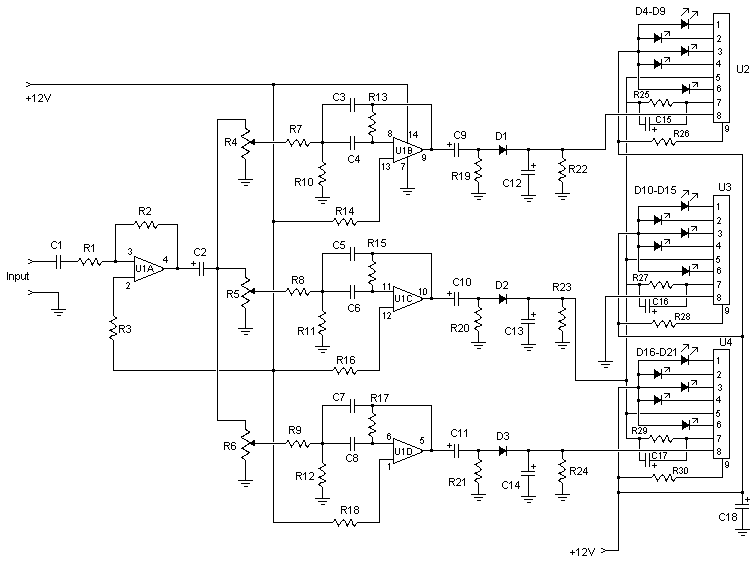

Part Total Qty. Description Substitutions R1 1 100K 1/4W Resistor R2 1 820K 1/4W Resistor R3, R14, R16, R18 4 2.2 Meg 1/4W Resistor R4, R5, R6 3 22K Pot R7, R8, R9, R25, R27, R29 6 10K 1/4W Resistor R10, R11, R12 3 680 Ohm 1/4W Resistor R13. R15, R16 3 580K 1/4W Resistor R19, R20, R21 3 39K 1/4W Resistor R22, R23, R24 3 47K 1/4W Resistor R26, R28, R30 3 33 Ohm 1/4W Resistor C1, C5, C6 3 0.012uF Polystyrene Capacitor C2, C9, C10, C11 4 3.3uF Electrolytic Capacitor C3, C4 2 0.0022uF Polystyrene Capacitor C7, C8 2 47nF Polystyrene Capacitor C12, C13, C14 3 0.47uF Electrolytic Capacitor C15, C16, C17 3 22uF Electrolytic Capacitor D1, D2, D3 3 1N4002 Silicon Diode D4, D5, D6, D8, D8 5 Green LED D10, D11, D12, D13, D14 5 Amber LED D16, D17, D18, D19, D20 5 Red LED U1 1 LM3900 Quad Op Amp U2, U3, U4 3 AN6884 Bar Graph IC MISC 1 Board, Wires, Sockets For ICs
