Montando Amplificador Mono Com Transistores FETS Para 800 Watts

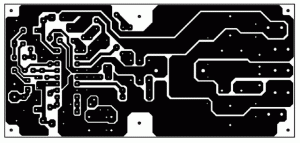

Lista de componentes
Todos os resistores são de 1/4 w salvo contrario
Designators Component Value
C1 100uf 160v RB
C2 10PF Ceramic
C3 47UF/100V RB
C4 47UF/100V RB
C5 47UF/100V RB
C6 47UF/100V RB
C7 47UF/100V RB
C8 47UF/100V RB
C9 10pf Ceramic
C10 1uf MKT
C11 2n2 MKT
C12 68pf Ceramic
C13 2n2 MKT
C14 220uf 25v RB
C15 47uf Bipolar
C16 100nf MKT
C17 100nf MKT
C18 47uf Bipolar
C19 47uf 25v RB
C20 47UF 100V RB
C21 47UF 100V RB
C22 47UF 100V RB
C23 47UF 100V RB
C24 47UF 100V RB
C25 47UF 100V RB
C26 100uf 160v RB
C27 100nf-x2/250vac Mains Rated
D1 1N4007 1 amp diode
D2 1N4007 1 amp diode
HS1 1 inch pitch, Min 10 Degrees/Watt
HS2 1 inch pitch, Min 10 Degrees/Watt
LD1 LED any colour
LD2 LED any colour
P1 5K POT Multi turn or 10 turns
Q1 2SC2240 TO-220
Q2 2SC2240 TO-92A
Q3 2SA1306 TO-220
Q4 2SA1306 TO-220
Q5 IRF610 TO-220
Q6 BC546 TO-92
Q7 BC546 TO-92
Q8 IRF610 TO-220
Q9 IRFP240 TO-3P
Q10 IRFP240 TO-3P
Q11 IRFP240 TO-3P
Q12 IRFP240 TO-3P
Q13 IRFP240 TO-3P
Q14 IRFP240 TO-3P
Q15 IRFP240 TO-3P
Q16 IRFP9240 TO-3P
Q17 IRFP9240 TO-3P
Q18 IRFP9240 TO-3P
Q19 IRFP9240 TO-3P
Q20 IRFP9240 TO-3P
8
Designators Component Value
Q21 IRFP9240 TO-3P
Q22 IRFP9240 TO-3P
Q23 MJE340 TO-126
Q24 2SC3298 TO-220
Q25 2SC3298 TO-220
Q26 IRF9610 TO-220
All of the resistors are ¼ Watt metal film 1% tolerance unless otherwise stated.
R1 2k2
R2 2k2
R3 120
R4 100
R5 Wire LINK2
R6 0.22 3 or 5 WATT
R7 0.22 3 or 5 WATT
R8 0.22 3 or 5 WATT
R9 0.22 3 or 5 WATT
R10 0.22 3 or 5 WATT
R11 0.22 3 or 5 WATT
R12 0.22 3 or 5 WATT
R13 10k 1watt
R14 470
R15 470
R16 470
R17 470
R18 470
R19 470
R20 470
R21 47K
R22 100
R23 Wire LINK4
R24 100
R25 4k7
R26 4k7
R27 4k7
R28 47
R29 47
R30 4k7
R31 4k3
R32 10 Ohm 1watt
R33 1k
R34 100
R35 470
R36 390
R37 15k
R38 330
R39 470
R40 10k 1 Watt
R41 Wire LINK3
R42 10k 1watt
R43 100
R44 100
R45 Wire LINK5
R46 47K
R47 470
R48 470
Designators Component Value
9
Designators Component Value
R49 470
R50 470
R51 470
R52 470
R53 470
R54 100
R55 100
R56 10k
R57 100
R58 0.22 3 or 5 WATT
R59 0.22 3 or 5 WATT
R60 0.22 3 or 5 WATT
R61 0.22 3 or 5 WATT
R62 0.22 3 or 5 WATT
R63 0.22 3 or 5 WATT
R64 0.22 3 or 5 WATT
R65 10 Ohm 5 WATT
ZD1 15v 1watt Zener Diode
ZD2 15v 1watt Zener Diode
10
Component Value Quantity
Misc
1 Inch pitch 10 Degree/watt heat sinks 2
Wire Links 4
Resistors
0.22 Ohm 3 Watt Resistor 14
100 Ohm Resistor 8
100 Ohm Resistor 1
10k Ohm Resistor 1
10k Ohm 1watt Resistor 3
10 Ohm 1watt Resistor 1
120 Ohm Resistor 1
15k Ohm Resistor 1
1k Ohm Resistor 1
2k2 Ohm Resistor 2
330 Ohm Resistor 1
390 Ohm Resistor 1
47 Ohm Resistor 2
470 Ohm Resistor 17
47K Ohm Resistor 2
4k3 Ohm Resistor 1
4k7 Ohm Resistor 4
10 Ohm 5 Watt Resistor 1
5K multi turn POT 1
Capacitors
10PF Capacitor 1
10pf Capacitor 1
100nf MKT Capacitor 1
100nf MKT Capacitor 1
100nfx2 250vac Capacitor 1
100uf 160v Capacitor 2
1uf MKT Capacitor 1
220uf 25v Capacitor 1
2n2 MKT Capacitor 2
47uf 100V Capacitor 12
47uf 25v Capacitor 1
47uf BP Capacitor 2
68pf Capacitor 1
Semiconductors
15v 1watt Zener Diode 1
15v 1watt Zener Diode 1
1N4007 1 amp Diode 2
2SA1306 Transistor 2
2SC2240 or 2SC2546 Transistor 2
2SC3298 Transistor 2
BC546 Transistor 2
IRF610 Transistor 2
IRF9610 Transistor 1
IRFP240 Transistor 7
IRFP9240 Transistor 7
Light Emitting Diodes 2
11
Lista de componentes
Todos os resistores são de 1/4 w salvo contrario
Designators Component Value
C1 100uf 160v RB
C2 10PF Ceramic
C3 47UF/100V RB
C4 47UF/100V RB
C5 47UF/100V RB
C6 47UF/100V RB
C7 47UF/100V RB
C8 47UF/100V RB
C9 10pf Ceramic
C10 1uf MKT
C11 2n2 MKT
C12 68pf Ceramic
C13 2n2 MKT
C14 220uf 25v RB
C15 47uf Bipolar
C16 100nf MKT
C17 100nf MKT
C18 47uf Bipolar
C19 47uf 25v RB
C20 47UF 100V RB
C21 47UF 100V RB
C22 47UF 100V RB
C23 47UF 100V RB
C24 47UF 100V RB
C25 47UF 100V RB
C26 100uf 160v RB
C27 100nf-x2/250vac Mains Rated
D1 1N4007 1 amp diode
D2 1N4007 1 amp diode
HS1 1 inch pitch, Min 10 Degrees/Watt
HS2 1 inch pitch, Min 10 Degrees/Watt
LD1 LED any colour
LD2 LED any colour
P1 5K POT Multi turn or 10 turns
Q1 2SC2240 TO-220
Q2 2SC2240 TO-92A
Q3 2SA1306 TO-220
Q4 2SA1306 TO-220
Q5 IRF610 TO-220
Q6 BC546 TO-92
Q7 BC546 TO-92
Q8 IRF610 TO-220
Q9 IRFP240 TO-3P
Q10 IRFP240 TO-3P
Q11 IRFP240 TO-3P
Q12 IRFP240 TO-3P
Q13 IRFP240 TO-3P
Q14 IRFP240 TO-3P
Q15 IRFP240 TO-3P
Q16 IRFP9240 TO-3P
Q17 IRFP9240 TO-3P
Q18 IRFP9240 TO-3P
Q19 IRFP9240 TO-3P
Q20 IRFP9240 TO-3P
8
Designators Component Value
Q21 IRFP9240 TO-3P
Q22 IRFP9240 TO-3P
Q23 MJE340 TO-126
Q24 2SC3298 TO-220
Q25 2SC3298 TO-220
Q26 IRF9610 TO-220
All of the resistors are ¼ Watt metal film 1% tolerance unless otherwise stated.
R1 2k2
R2 2k2
R3 120
R4 100
R5 Wire LINK2
R6 0.22 3 or 5 WATT
R7 0.22 3 or 5 WATT
R8 0.22 3 or 5 WATT
R9 0.22 3 or 5 WATT
R10 0.22 3 or 5 WATT
R11 0.22 3 or 5 WATT
R12 0.22 3 or 5 WATT
R13 10k 1watt
R14 470
R15 470
R16 470
R17 470
R18 470
R19 470
R20 470
R21 47K
R22 100
R23 Wire LINK4
R24 100
R25 4k7
R26 4k7
R27 4k7
R28 47
R29 47
R30 4k7
R31 4k3
R32 10 Ohm 1watt
R33 1k
R34 100
R35 470
R36 390
R37 15k
R38 330
R39 470
R40 10k 1 Watt
R41 Wire LINK3
R42 10k 1watt
R43 100
R44 100
R45 Wire LINK5
R46 47K
R47 470
R48 470
Designators Component Value
9
Designators Component Value
R49 470
R50 470
R51 470
R52 470
R53 470
R54 100
R55 100
R56 10k
R57 100
R58 0.22 3 or 5 WATT
R59 0.22 3 or 5 WATT
R60 0.22 3 or 5 WATT
R61 0.22 3 or 5 WATT
R62 0.22 3 or 5 WATT
R63 0.22 3 or 5 WATT
R64 0.22 3 or 5 WATT
R65 10 Ohm 5 WATT
ZD1 15v 1watt Zener Diode
ZD2 15v 1watt Zener Diode
10
Component Value Quantity
Misc
1 Inch pitch 10 Degree/watt heat sinks 2
Wire Links 4
Resistors
0.22 Ohm 3 Watt Resistor 14
100 Ohm Resistor 8
100 Ohm Resistor 1
10k Ohm Resistor 1
10k Ohm 1watt Resistor 3
10 Ohm 1watt Resistor 1
120 Ohm Resistor 1
15k Ohm Resistor 1
1k Ohm Resistor 1
2k2 Ohm Resistor 2
330 Ohm Resistor 1
390 Ohm Resistor 1
47 Ohm Resistor 2
470 Ohm Resistor 17
47K Ohm Resistor 2
4k3 Ohm Resistor 1
4k7 Ohm Resistor 4
10 Ohm 5 Watt Resistor 1
5K multi turn POT 1
Capacitors
10PF Capacitor 1
10pf Capacitor 1
100nf MKT Capacitor 1
100nf MKT Capacitor 1
100nfx2 250vac Capacitor 1
100uf 160v Capacitor 2
1uf MKT Capacitor 1
220uf 25v Capacitor 1
2n2 MKT Capacitor 2
47uf 100V Capacitor 12
47uf 25v Capacitor 1
47uf BP Capacitor 2
68pf Capacitor 1
Semiconductors
15v 1watt Zener Diode 1
15v 1watt Zener Diode 1
1N4007 1 amp Diode 2
2SA1306 Transistor 2
2SC2240 or 2SC2546 Transistor 2
2SC3298 Transistor 2
BC546 Transistor 2
IRF610 Transistor 2
IRF9610 Transistor 1
IRFP240 Transistor 7
IRFP9240 Transistor 7
Light Emitting Diodes 2
11
