Power amp 400W IRFP448 Circuit
Amplifier circuit today,We would like to show you for the MOSFET 400 watt amplifier is amplifier on my kW shares the same circuit and basic PCB layout.
The only real difference is the number of output devices to the device.
We have using The IRFP448 design while the MOSFET amplifier 14 O / P devices.
These amplifiers can be used for virtually any application that requires high performance, low use Noise, distortion and excellent sound quality. Examples would be subwoofer amplifier should FOH stage
Amplifiers, surround a canal a very powerful sound amplifier, etc.
The 400W MOSFET-amplifier has four key stages of amplification. We are looking to start any Phase appropriate detail.
The bias and buffer stage
As the name suggests All Q ,C and ZD the Bias and buffer phases. Its main goal is to provide a stable MOSFET Gates and offset voltage and the voltage buffer amplifier stage of the High Resource capacity. What would have without the phase response and the effect
Slew rate is indeed very bad. The flip side of the coin is not the extra step
Introduction of an additional dominant pole in the amplifier feedback loop.
400W MOSFET PCB

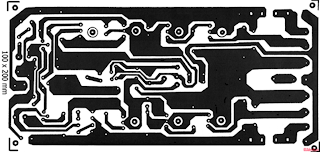

Power amp 400W IRFP448 PCB
and We have the electronic components layout thus as below

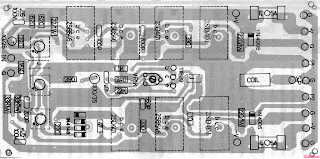

Power amp 400W IRFP448 PCB Layout
We have to continue in power circuit PCB and components layout


Power for Amplifier 400W IRFP448 Mesfet PCB


400W Power IRFP448 Mesfet PCB Layout

The final stage of the Current Gain Stage
Also to what the name suggests this stage converts the voltage developed in the VAS
and provides all the amps required to drive at 8 or 4 ohms. 2-ohm loads are possible
for several minutes at a time. In fact, I have tested more than 1600 1kW amplifier
Watts RMS at 2 ohms. But that would not be recommended as a long-term exposure at all.
If it is higher than the figures of the STI-amp.
Power to the AV amplifier 800
The components of the power for this amplifier are as follows, and are favored
A channel or a power module alone.
1 toroidal transformer with a rating of 1kVA. Primary windings are made to fit


Eklentiler

  • 400W MOSFET Amplifier.rar
    2,2 MB · Görüntüleme: 42
