12V to 9V DC Converter

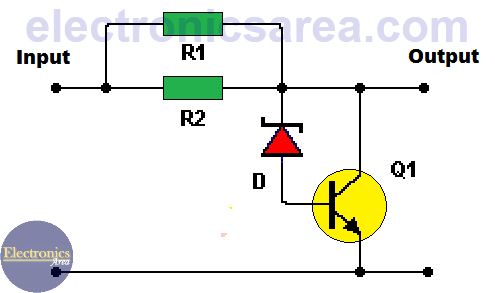

This 12V to 9V DC converter is very useful to power 9V DC devices in a car that uses a 12V DC battery. The maximum current consumption allowed by this circuit is 0.8 amps. This 12V to 9V DC converter is implemented using a zener diode and a NPN bipolar transistor (Q1) as shown in the circuit diagram.

To better understand the operation of this circuit, the following article is recommended: Zener voltage regulator.

How the 12V to 9V DC Converter works?
As in the zener voltage regulator from the above suggested link, a series resistor is used (R1 and R2 are used in parallel on this case).

The output voltage of the circuit is the zener diode voltage plus the transistor base – emitter voltage. (Vout = Vz + Vbe). Vout = 8.2 + 0.7 = 8.9 volts. A greater variation of the output current is allowed using the NPN transistor. This is not the case when the zener diode is used alone.



  • Use a heatsink as large as possible for thw Q1 transistor.
  • The converter input voltage must not exceed 14 Volts.

TIP41C NPN Bipolar Transistor

List of components for the 12V to 9V DC converter
  • 1 TIP41C NPN bipolar transistor or similar (Q1)
  • 2 6.8 ohm resistors (5 watts or more) (R1, R2)
  • 1 1N756 zener diode 8.2 volts or similar (D)
  • 1 heatsink to be used on the Q1 transistor (required)
Suggested 12V to 9V DC converter printed circuit board
The following diagrams shows a suggested printed circuit board (PCB) and an approximate view of the final circuit appearance.
