This power amplifier driver is a very powerful power driver called Namec TEF, Namec itself stands for New American Driver power amplifier is very suitable to use sanken Final 2sc2922 2sa1216 transistors, Power output can produce up to 1000W. To assemble this power amplifier is bothered easy, very simple schematics and components. but need carefulness and diligence in assembling this power. See below the circuit schematic of Driver Power Amplifier Namec TEF:

Part List:
Resistor
R1=4k7
R2=47k
R3=4k7
R4=12k
R5=330R
R6=47k
R7=22k
R8=33k
R9=100R/2W
R10=47k
R11=2k2
R12=1k
R13=10R
R14=100R/2W
R15=1k5
R16=220R
R17=150R/2W
R18=150R/2W
R19=56R/2W
R20=56R/2W
RV1=1K Trimpot
RV2=1K Trimpot

Capacitor
C1=4u7/50V
C2=100pF
C3=47u/100V
C4=100u/100V
C5=100N
C6=100u/100V
C7=100N

Diode
D1= ZD12V/1W

Transistor
Q1=C945
Q2=TIP42
Q3=C945
Q4=TIP41
Q5=MJE340
Q6=TIP42
Q7=TIP41
Q8=2SA1943
Q9=2SC5200

Connector
J1=Audio Input
J2= To (-) Base Final Transistor
J3= To (+) Base Final Transistor
J4= VCC+ 45V - 80V DC
J5=VCC- 45V - 80V DC
GND= Ground

To make it easy assembling the driver power amplifier you can make with this PCB Layout design below:




Eklentiler

  • driver power amplifier namec tef.jpg
    driver power amplifier namec tef.jpg
    156,1 KB · Görüntüleme: 34
  • driver power namec tef.jpg
    driver power namec tef.jpg
    32,1 KB · Görüntüleme: 30
  • Driver Power Amplifier Namec TEF (1).jpg
    Driver Power Amplifier Namec TEF (1).jpg
    54,4 KB · Görüntüleme: 29

Yazar: guclusat
Makale başlığı: 1000W Sürücü Güç Amplifikatörü
Kaynak URL: Uydudoktoru Forum-https://uydudoktoru.com/
Alıntı ve Paylaşım Kuralları: Kaynak dahil olmak üzere makaleden kısa alıntı yapılabilir ancak makalenin tamamı yazarın izni olmadan başka bir siteye kopyalanamaz veya başka bir yerde yayınlanamaz.

guclusat

Tanınmış Üye
Süper Moderatör
Booster Amplifier circuit

The circuit of booster amplifiers or amplifier end of a power amplifier circuit, Circuit over in the most important influence whether or not , and many more are affected in this final amplifier circuit.


Booster Amplifier Circuit Diagram :



Because the booster circuit is the amplifier end of the work was too heavy components causing the rapid component of the heat. If you are wrong when install the components, that can cause fatal damaged the component , such us the installation of pin emiter, collector , and base everything must be correct.

In the circuit above can strengthen booster amplifier with maximum work and everything is evenly split, what is it evenly split ? evenly split the point here is that all components can work with the same voltage and the heat evenly , this is because at each respetive base transistor were given the same constrains and same wattage resistor. And to maintain if the power output is too large then the resistor on Re will hamper so that the transistor is not easily broken.

Part List Booster Amplifier / Final Transistor :Rb=10R/1W
Re=0,5-1R/5W
Q1=Transistor power NPN such us 2N3055 , TIP3055,TIP120,TIP142,2SC2922 , 2SC5200 , etc.
Q2=Transistor Power PNP such us MJ2955 ,TIP2955,TIP125,TIP147,2SA1216, 2SA1943 , etc.
X1=Voltage connector (-)
X2=PNP Base connector
X3=Speaker connecor but also must be connected from the buffer
X4=NPN base connector
X5=Voltage connector (+)

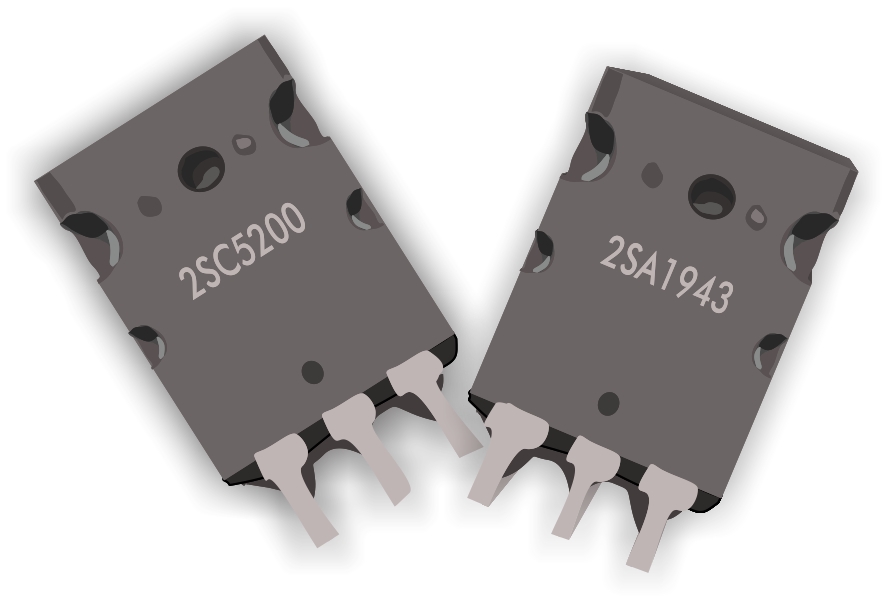

2SC5200 2SA1943 Ex Transistor Final

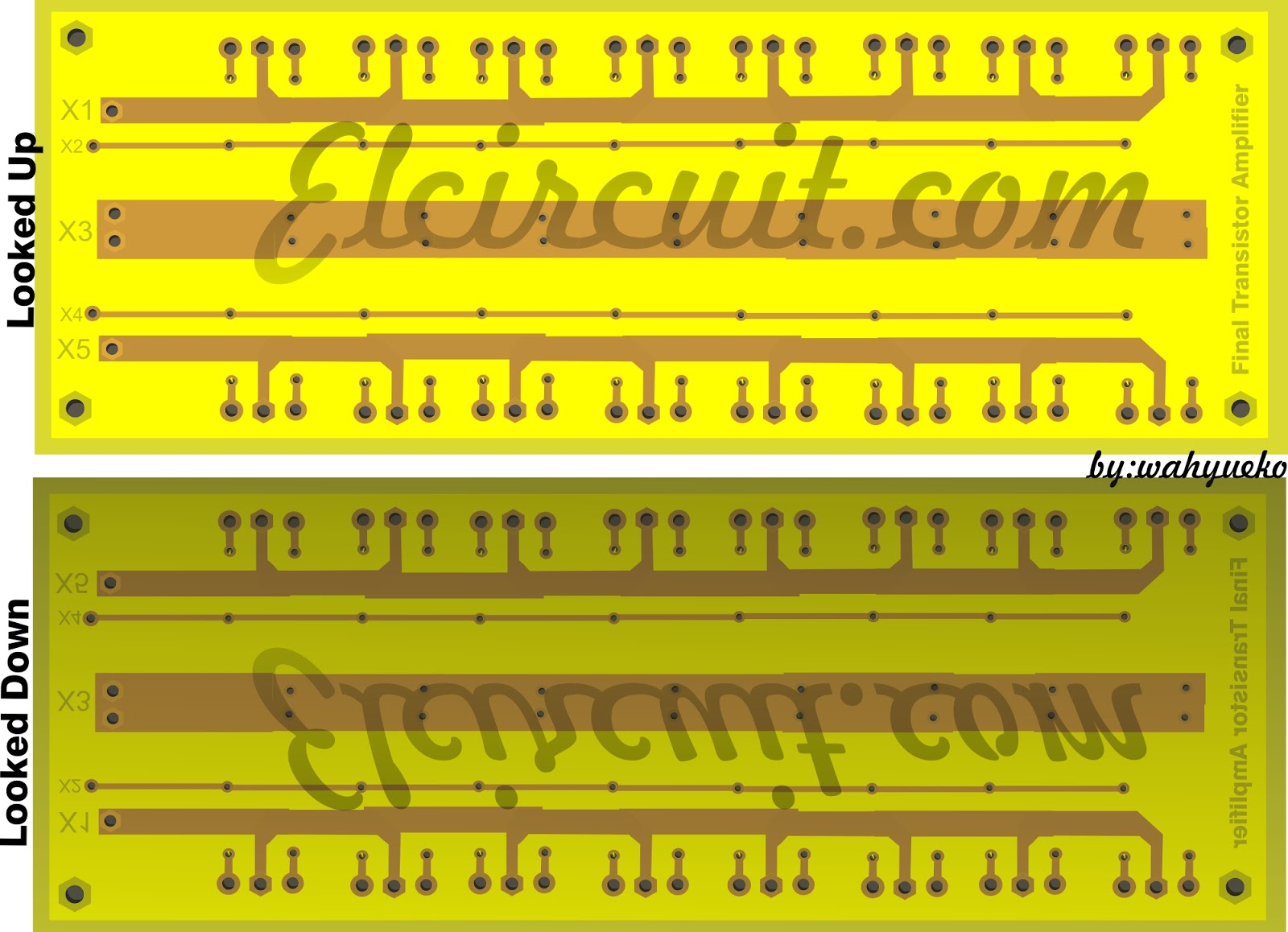

PCB Layout Booster amplifier ( Transistor Final )






Eklentiler

  • Booster amplifier circuit.jpg
    Booster amplifier circuit.jpg
    283,7 KB · Görüntüleme: 19
  • PCB transistor final.jpg
    PCB transistor final.jpg
    236,8 KB · Görüntüleme: 20
  • transistor final 2SC5200 2SA1943.jpg
    transistor final 2SC5200 2SA1943.jpg
    239 KB · Görüntüleme: 25
