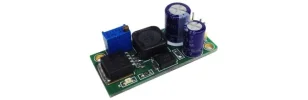

1.2V TO 37V, 3AMP ADJUSTABLE POWER SUPPLY USING LM2576

guclusat

Tanınmış Üye
Süper Moderatör
Features

  • Output 1.2 to 37 VDC @ 3 A
  • Onboard Trim-Potentiometer for output voltage adjust
  • On Board Power LED
  • Header Connector For Input & Output
  • Adjustable Version Output Voltage Range, 1.23 to 37 V +/-4%
  • Maximum Over Line and Load Conditions
  • Guaranteed 3.0 A Output Current
  • Wide Input Voltage Range 40V
  • 52 kHz Fixed Frequency Internal Oscillator
  • TTL Shutdown Capability, Low Power Standby Mode
  • High Efficiency
  • Thermal Shutdown and Current Limit Protection


Eklentiler

  • 1.2V-To-37V-_3Amp_-Adjustable_Power-Supply-Circuit-Using-LM2575ADJ-1.pdf
    9,6 KB · Görüntüleme: 15
