    The firmware of the MON-IP7 and MON-7HD IP camera test monitor can be updated to fix any bugs and to add the latest features released by the developers. The instructions below explain step by step how to update the firmware of the MON-IP7 IP Test Monitor from CCTV Camera Pros. You can learn more about the MON-IP7 test monitor here. You can learn more about the MON-7HD HD CCTV / IP camera tester here. They are basically the same produect except in addition to IP camera and analog CCTV cameras, the MON-7HD also supports HD security cameras (AHD, HD-TVI, and HD-CVI cameras). All other functions are identical.

    How to update the firmware
    1. First, contact CCTV Camera Pros via email at support@cctvcamerapros.net for the latest version of the firmware. The firmware will be sent to you in a Zip File via email.

    2. Then extract all of the files from the Zip File.

    3. Now remove the SD Card from the MON-IP7 and insert it into the computer the has the extracted update files. You will want to put the update files into the folder called Update on the SD Card.

    4. Now reinsert the SD Card back into the monitor.

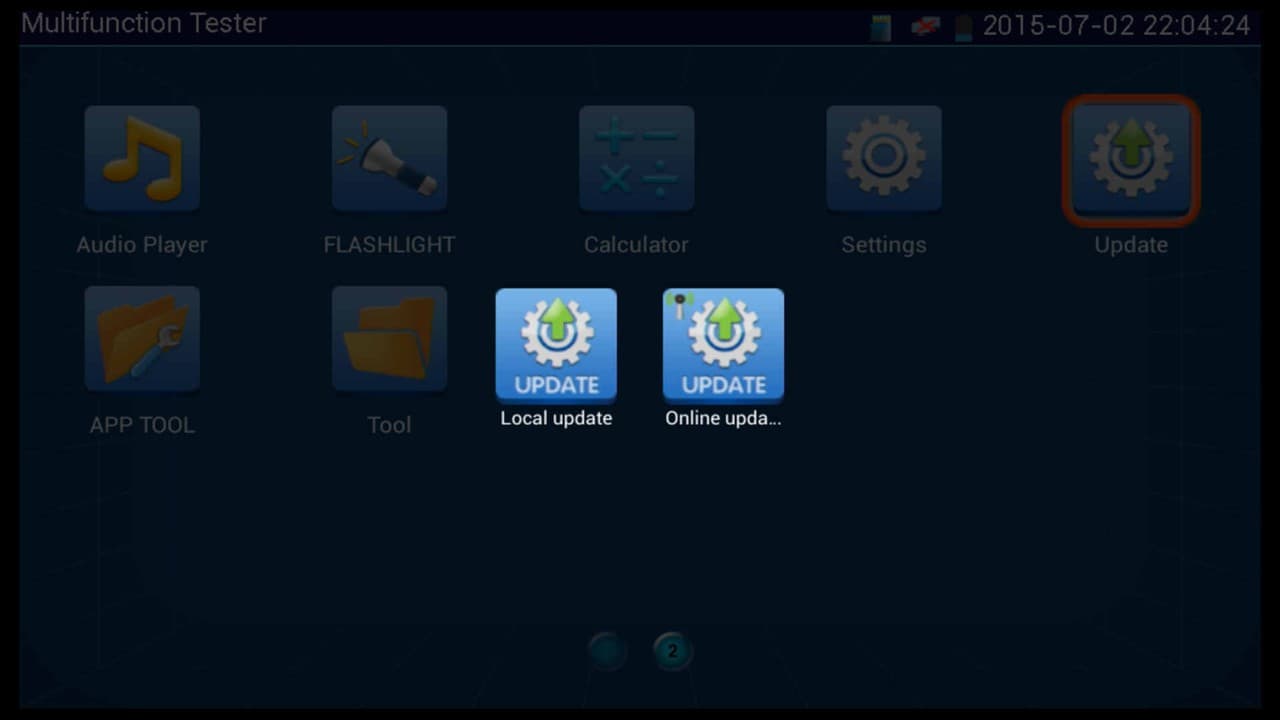

    5. On the monitor, press the Update icon. (Shown Below)

    [​IMG]

    6. Then select the Local Update, you will then be notified that there is a new version of the firmware, click OK to continue. (Shown Below)

    [​IMG]

    [​IMG]

    7. On the Local Update menu, press the Update All button to begin the update process. You will then be prompted to restart the test monitor, press OK to continue. (Shown Below)

    [​IMG]

    [​IMG]

    8. The update process will now begin. Once it reaches 100%, the monitor will restart and the update will be complete. (Shown Below)

    [​IMG]
